Product Features:

Dry and Wet Combined Cooling Tower (DWCT) refers to the cooling tower combines with dry and wet cooling mode. DWCT with high heat transfer efficiency, energy and water saving effect. DWCT can be used for cooling tower low white fog requirements of the plant, but also suitable for areas with serious water saving requirements. Our company is divided into V-type DWCT series products (EMDW-VS) and P-type DWCT series products (EMDW-PS).

● The finned tube is made of ring-welded aluminum fins, and the fins are all high fins with large finning ratio and high finning efficiency;

● The sheet can use magnesium-aluminum-zinc-plated or stainless steel panel with high corrosion resistance;

● The coil can be made of stainless steel or copper, with high heat exchange effect and long service life;

● Fan multi-table combination, in the lower ambient temperature, can close part of the fan, the energy consumption is lower;

● Reserve stop spraying design, when the ambient temperature reaches the stop spraying temperature can stop spraying, water-saving high efficiency;

● The coil has a tilted angle, which is more conducive to drainage and anti-freezing in winter;

● No filler design, suitable for the northwest in China and sandy wind, water quality is hard.

EMDW-VS series:

V-type wet and dry combined cooling tower, the air-cooling part is in V-type design, providing greater air-cooling heat dissipation capacity. Suitable for projects with large water volume and high stop spray temperature.

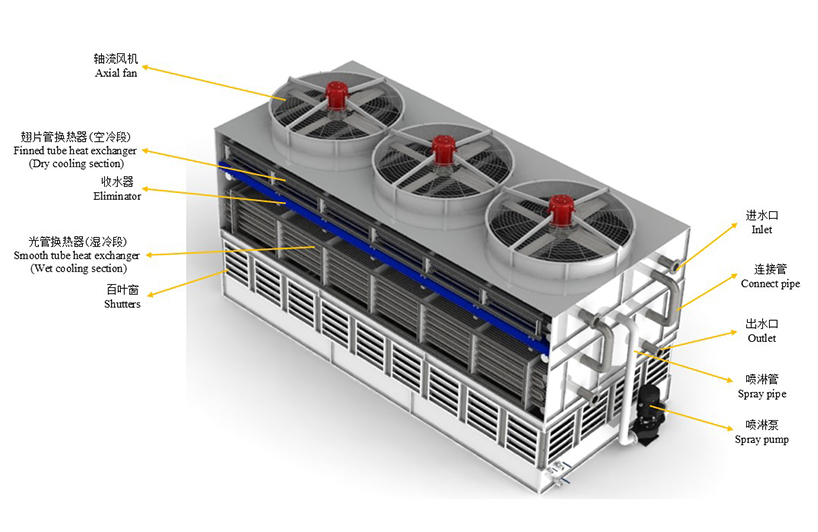

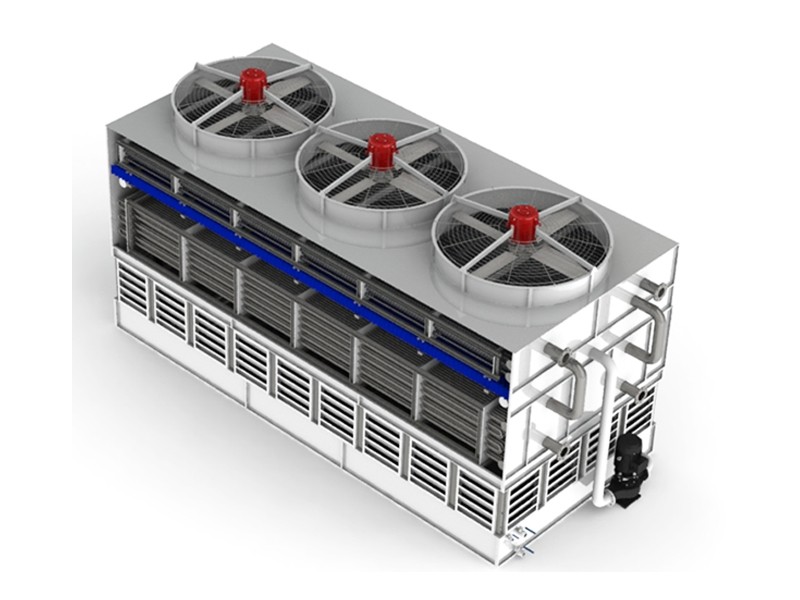

EMDW-PS series:

P-type dry and wet combined cooling tower, the air cooler part is horizontally placed above the wet cooling section, the structure is more compact. It is suitable for cooling towers with mist elimination design requirements, and projects with lower stop spraying temperature requirements.
